The recommended operating temperature range for the DMR-05-T-V-T/R is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the relay's performance and lifespan may be affected by extreme temperatures.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines. Apply a small amount of solder paste to the PCB pads, and then place the relay module. Use a soldering iron with a temperature range of 250°C to 260°C to solder the pins. Avoid applying excessive heat or pressure, which can damage the relay or PCB.
The maximum switching frequency for the DMR-05-T-V-T/R is 20 Hz. Exceeding this frequency may lead to reduced relay lifespan or premature failure. It's essential to consider the application's requirements and ensure the relay is operated within the recommended frequency range.
While the DMR-05-T-V-T/R is designed to be robust, it's essential to consider the vibration levels in your application. The relay module can withstand moderate vibration levels, but excessive vibration may affect its performance or lifespan. If your application involves high-vibration environments, consider using additional mounting or vibration-dampening measures to ensure reliable operation.
To minimize EMI, ensure proper PCB layout and design, keeping the relay module away from high-frequency components and cables. Use shielding or EMI filters if necessary. Additionally, follow proper grounding and decoupling techniques to reduce EMI susceptibility.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMR-05-T-V-T/R Overview

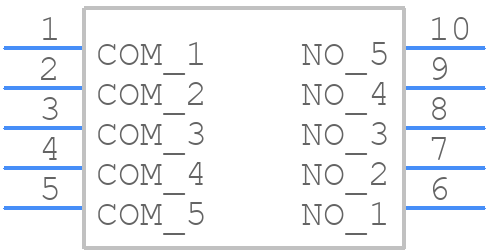

Use the download button to access the DMR-05-T-V-T/R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DMR-0,
or try a keyword search, such as DIP Switches
