The recommended PCB layout and land pattern can be found in the Diptronics Manufacturing Inc application note AN-001, which provides detailed guidelines for PCB design and layout considerations.
To ensure reliable switching performance and minimize contact bounce, it is recommended to use a debouncing circuit or a capacitor in parallel with the relay coil to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
The maximum switching frequency of the DMR-06-T-V-T/R is 20 Hz. Exceeding this frequency may reduce the relay's lifespan due to increased wear and tear on the contacts. It is recommended to follow the recommended switching frequency to ensure optimal relay performance and lifespan.
The DMR-06-T-V-T/R is rated for operation up to 85°C. However, it is recommended to derate the relay's current handling capacity by 1.5% per degree Celsius above 70°C to ensure reliable operation. Additionally, ensure proper heat dissipation and thermal management in the system design.
To ensure EMC and reduce EMI, it is recommended to use a shielded cable for the relay coil, keep the relay away from sensitive circuits, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMR-06-T-V-T/R Overview

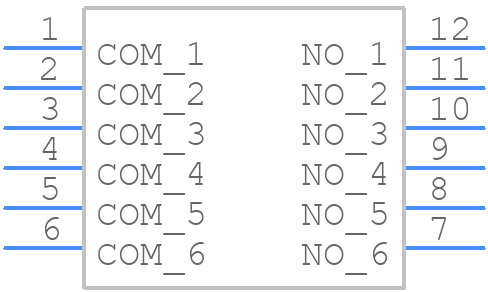

Use the download button to access the DMR-06-T-V-T/R schematic symbol and PCB footprint.
