DMR-08-T-V-T/R - Diptronics

Description: 8Bit SPST Black Slide (Standard),凹槽式 SMD-16P,6.2x21.3mm DIP Switches ROHS

Download DMR-08-T-V-T/R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

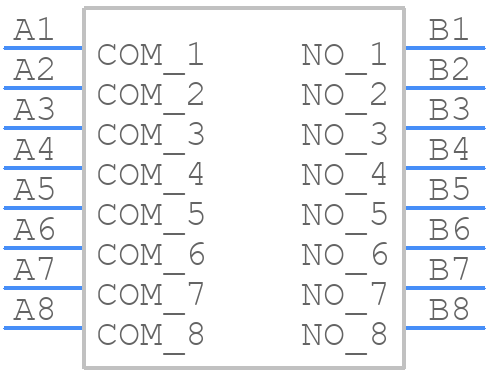

DMR-08-T-V-T/R - Diptronics - PCB symbol
click to zoom
PCB Footprints
DMR-08-T-V-T/R - Diptronics PCB footprint - Other - Other - DMR-08-T-V-T/R-2
click to zoom
3D Models
DMR-08-T-V-T/R - Diptronics - 3D model - Other - DMR-08-T-V-T/R-2
click to zoom

DMR-08-T-V-T/R Details

  • Manufacturer Part Number:

    DMR-08-T-V-T/R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Diptronics Manufacturing Inc

  • YTEOL:

    6.9

  • Actuator Color:

    WHITE

  • Actuator Material:

    POLYAMIDE/POLYETHYLENE

  • Actuator Type:

    SLIDE TYPE

  • Additional Feature:

    APPROVAL: UL; LOW PROFILE

  • Body Breadth:

    6.2 mm

  • Body Color:

    BLACK

  • Body Height:

    3 mm

  • Body Length or Diameter:

    21.26 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    0.025A@24VDC

  • Contact Function:

    ON-OFF

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    2000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD

  • Housing Material:

    POLYETHYLENE/POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYETHYLENE/POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switch Sections:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Sealing:

    TOP TAPE SEALED

  • Solderability:

    HAND/REFLOW/WAVE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Terminal Material:

    BRASS

  • Termination Type:

    SOLDER
