The recommended land pattern for the DMT2-134-4.8L is available in the Coilcraft Land Pattern Library, which provides a downloadable PDF with detailed dimensions and layout recommendations.
The DMT2-134-4.8L has a maximum operating temperature of 125°C, but it's recommended to derate the current rating for temperatures above 80°C. Consult the datasheet for specific derating guidelines.
Handle the DMT2-134-4.8L by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to place the component on the PCB. Avoid bending or flexing the leads during assembly.
Yes, the DMT2-134-4.8L is compatible with lead-free soldering processes, including RoHS and WEEE compliance. However, ensure that the soldering temperature and profile follow the recommended guidelines.
The ESR of the DMT2-134-4.8L is not explicitly stated in the datasheet, but it can be estimated using the Q factor and inductance values. For a more accurate calculation, contact Coilcraft's technical support or consult their application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMT2-134-4.8L Overview

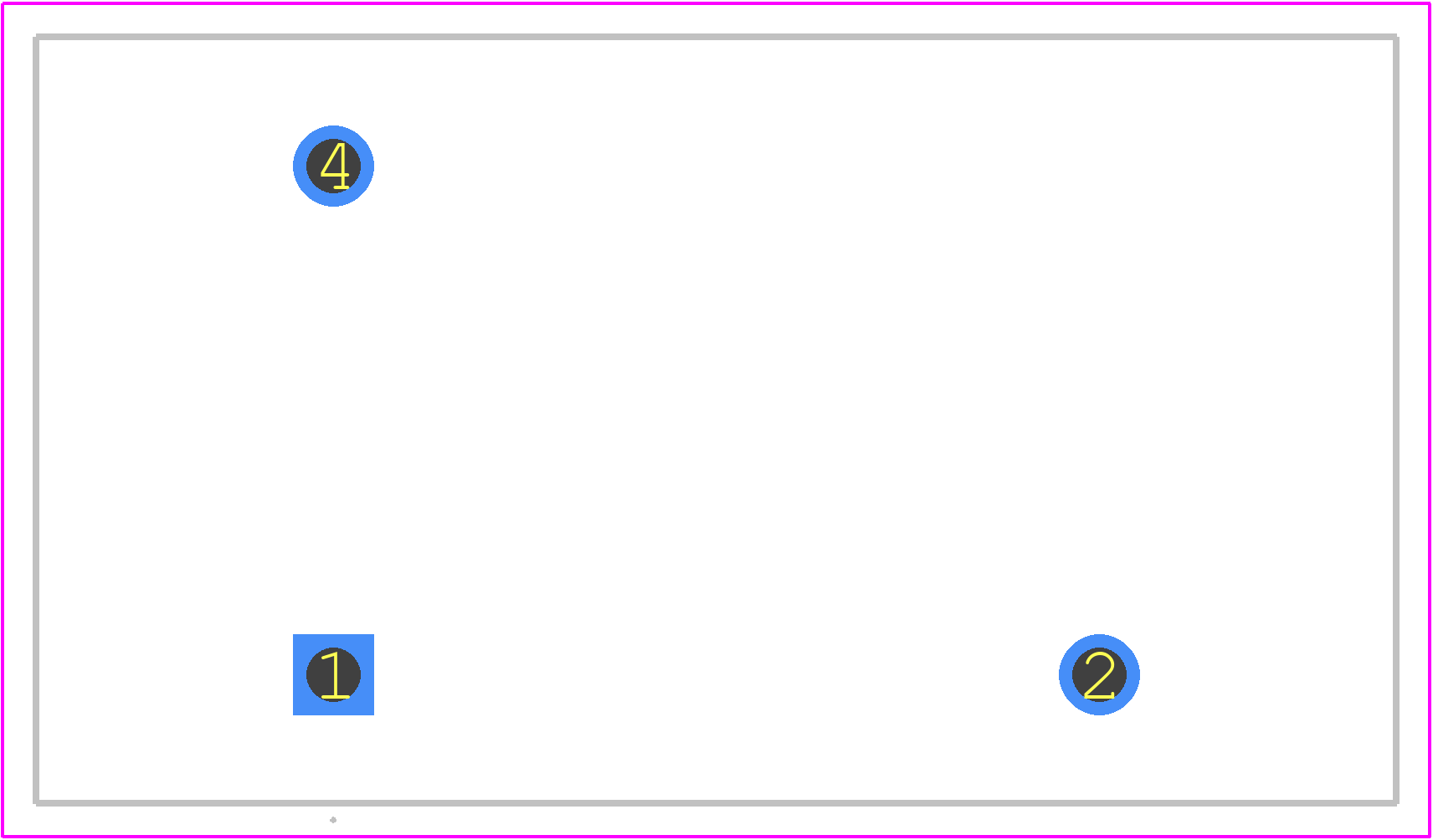

Use the download button to access the DMT2-134-4.8L schematic symbol, PCB footprint, and 3D model.
