DMT3-402-3.7L - COILCRAFT

Description: Fixed Inductors DMT1 Power Chokes Toroidal Output

Download DMT3-402-3.7L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DMT3-402-3.7L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

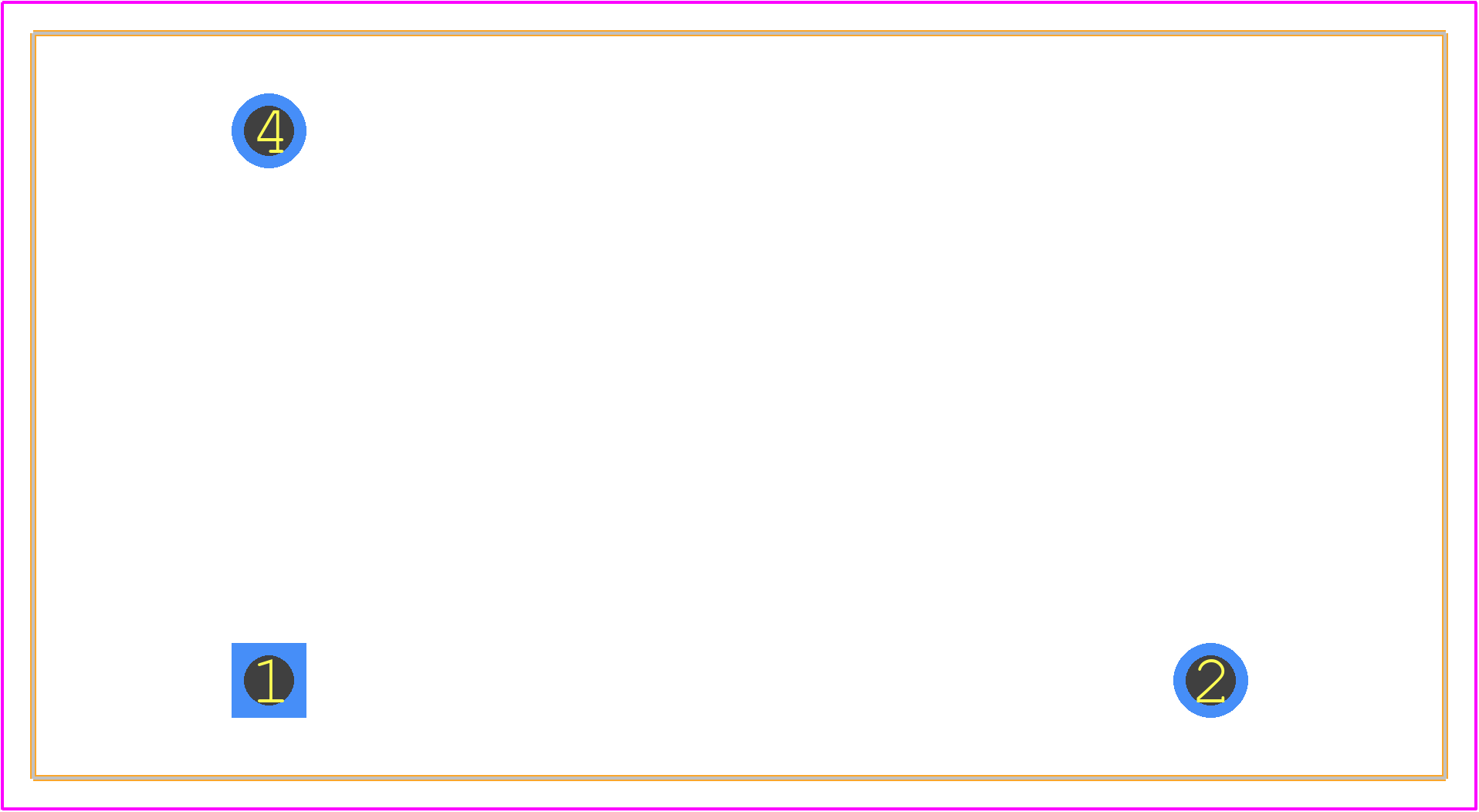

DMT3-402-3.7L - COILCRAFT PCB footprint - Other - Other - DMT3-402-3.7L-1
click to zoom
3D Models
DMT3-402-3.7L - COILCRAFT - 3D model - Other - DMT3-402-3.7L-1
click to zoom

DMT3-402-3.7L Details

  • Manufacturer Part Number:

    DMT3-402-3.7L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.7

  • Construction:

    Rectangular

  • DC Resistance:

    0.279 Ω

  • Inductance-Nom (L):

    402 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    1.32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    48.3 mm

  • Package Length:

    45.7 mm

  • Package Style:

    PCB Mount

  • Package Width:

    24.1 mm

  • Rated Current-Max:

    3.7 A

  • Self Resonance Frequency:

    1.25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01575 MHz
