The recommended PCB footprint for the DMT3006LFDF-7 is a 2x2 array of 0.5mm pitch pads, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's essential to consult the manufacturer's application note for detailed guidelines.
To ensure proper soldering, use a reflow oven with a peak temperature of 240°C to 250°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation. It's also crucial to follow the manufacturer's recommended soldering profile and use a solder paste with a melting point above 217°C.
The DMT3006LFDF-7 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to consider the application's thermal requirements and ensure proper thermal management.
The DMT3006LFDF-7 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If your application requires operation in humid conditions, consider using a moisture-resistant coating or conformal coating to protect the device.
To prevent damage, store the DMT3006LFDF-7 in its original packaging or an equivalent ESD-protective package. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures during storage and shipping. It's also essential to follow the manufacturer's recommended handling and storage procedures.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DMT3006LFDF-7 Overview

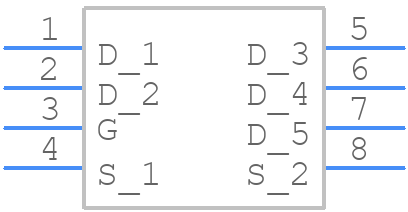

Use the download button to access the DMT3006LFDF-7 schematic symbol, PCB footprint, and 3D model.
