A good PCB layout for the DMT3020LSDQ-13 should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation across the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink or PCB.
The DMT3020LSDQ-13 has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Avoid touching the device pins or handling the device in a way that could generate static electricity.
The DMT3020LSDQ-13 is a commercial-grade device, but Diodes Incorporated offers other versions with enhanced reliability and automotive-grade options. For high-reliability or automotive applications, consider using a device specifically designed and qualified for those markets, such as the AEC-Q100 qualified version.
Follow the recommended soldering and rework conditions outlined in the datasheet, including peak temperatures, soldering times, and rework techniques. It's also essential to use a soldering iron with a temperature-controlled tip and a solder with a melting point compatible with the device's package.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMT3020LSDQ-13 Overview

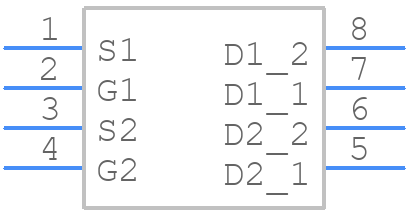

Use the download button to access the DMT3020LSDQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMT30,
or try a keyword search, such as Power Field-Effect Transistors
