DMT4008LFDF-7 - Diodes Incorporated

Description: N-Channel 40 V 11.8A (Ta) 800mW (Ta) Surface Mount U-DFN2020-6 (Type F)

Download DMT4008LFDF-7 Model

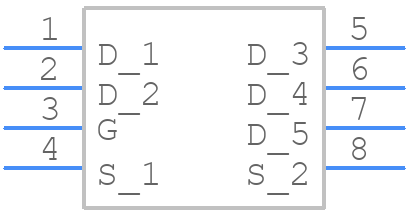

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMT4008LFDF-7 - Diodes Incorporated PCB footprint - Other - Other - U-DFN2020-6 (Type-F)
click to zoom
3D Models
DMT4008LFDF-7 - Diodes Incorporated  - 3D model - Other - U-DFN2020-6 (Type-F)
click to zoom

DMT4008LFDF-7 Details

  • Manufacturer Part Number:

    DMT4008LFDF-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    U-DFN2020-6, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-07-17

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    26.5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    11.8 A

  • Drain-source On Resistance-Max:

    0.0095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    42 pF

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2 W

  • Pulsed Drain Current-Max (IDM):

    70 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMT4008LFDF-7 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure proper soldering, Diodes Incorporated recommends using a soldering iron with a temperature of 260°C to 280°C, and a soldering time of 3 seconds to 5 seconds. The device should be soldered in a nitrogen atmosphere to prevent oxidation.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage below 5V to ensure reliable operation.
  • The DMT4008LFDF-7 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
  • The recommended operating temperature range for the DMT4008LFDF-7 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
