DMT69M5LH3 - Diodes Incorporated

Description: 75 A 60V N-CHANNEL ENHANCEMENT MODE MOSFET -55 to +150 °C

Download DMT69M5LH3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

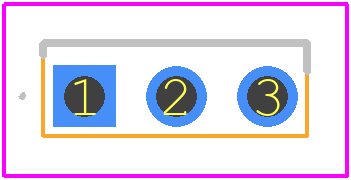

DMT69M5LH3 - Diodes Incorporated PCB footprint - Other - Other - TO251
click to zoom
3D Models
DMT69M5LH3 - Diodes Incorporated  - 3D model - Other - TO251
click to zoom

DMT69M5LH3 Details

  • Manufacturer Part Number:

    DMT69M5LH3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    37.5 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    75 A

  • Drain-source On Resistance-Max:

    0.015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    52 pF

  • JEDEC-95 Code:

    TO-251

  • JESD-30 Code:

    R-PSIP-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    96 W

  • Pulsed Drain Current-Max (IDM):

    300 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMT69M5LH3 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power handling capabilities.
  • Although not explicitly stated in the datasheet, the maximum allowed voltage on the enable pin (EN) is typically limited to the voltage supply rail (VCC) to prevent damage to the internal circuitry.
  • While the DMT69M5LH3 is primarily designed for low-frequency applications, it can be used in high-frequency switching applications with proper PCB layout, decoupling, and consideration of the device's parasitic capacitance and inductance.
  • The recommended input capacitor value and type depend on the specific application and operating conditions. However, a general guideline is to use a low-ESR ceramic capacitor with a value between 1-10uF, depending on the input voltage and current requirements.
