DMTH4011SPD-13 - Diodes Incorporated

Description: 40V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Download DMTH4011SPD-13 Model

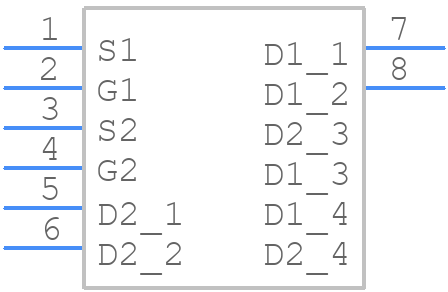

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH4011SPD-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8 (Type C)_2022
click to zoom
3D Models
DMTH4011SPD-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8 (Type C)_2022
click to zoom

DMTH4011SPD-13 Details

  • Manufacturer Part Number:

    DMTH4011SPD-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    21.4 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    42 A

  • Drain-source On Resistance-Max:

    0.015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    15 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    37.5 W

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH4011SPD-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The DMTH4011SPD-13 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2kV HBM and 100V MM ESD protection is recommended.
  • Yes, the DMTH4011SPD-13 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required depending on the specific application.
  • The recommended soldering conditions are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering iron temperature of 350°C.
