DMTH4014LPDQ-13 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 31V-40V

Download DMTH4014LPDQ-13 Model

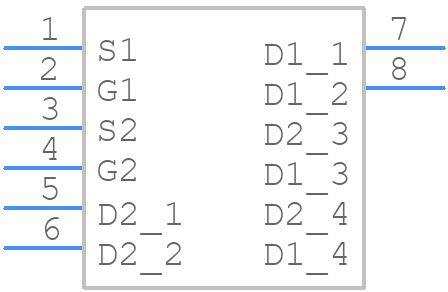

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH4014LPDQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8 (Type C)_2022
click to zoom
3D Models
DMTH4014LPDQ-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8 (Type C)_2022
click to zoom

DMTH4014LPDQ-13 Details

  • Manufacturer Part Number:

    DMTH4014LPDQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    20.5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    43.6 A

  • Drain-source On Resistance-Max:

    0.015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    24 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    42.8 W

  • Pulsed Drain Current-Max (IDM):

    174 A

  • Reference Standard:

    AEC-Q101; IATF 16949; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH4014LPDQ-13 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for DMTH4014LPDQ-13 is 1.65V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF ceramic capacitor at the output pin and a 1uF ceramic capacitor at the input pin.
  • The maximum output current that DMTH4014LPDQ-13 can provide is 1.5A.
  • To handle thermal management, it is recommended to provide a thermal pad on the PCB, and to ensure good airflow around the device. The maximum junction temperature should not exceed 150°C.
  • Yes, DMTH4014LPDQ-13 is AEC-Q100 qualified, making it suitable for automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMTH4014LPDQ-13 Overview

Use the download button to access the DMTH4014LPDQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMTH4, or try a keyword search, such as Power Field-Effect Transistors
