DMTH8008LFG-7 - Diodes Incorporated

Description: MOSFETs MOSFET BVDSS: 61V~100V PowerDI3333-8 T and R 2K

Download DMTH8008LFG-7 Model

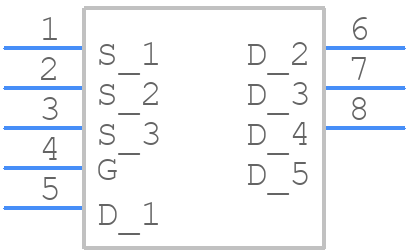

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH8008LFG-7 - Diodes Incorporated PCB footprint - Other - Other - POWERDI® 3333-8
click to zoom
3D Models
DMTH8008LFG-7 - Diodes Incorporated  - 3D model - Other - POWERDI® 3333-8
click to zoom

DMTH8008LFG-7 Details

  • Manufacturer Part Number:

    DMTH8008LFG-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    162 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    17 A

  • Drain-source On Resistance-Max:

    0.0069 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    31 pF

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    50 W

  • Pulsed Drain Current-Max (IDM):

    280 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH8008LFG-7 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and thermal vias under the device to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. X5R or X7R ceramic capacitors are suitable for this application.
  • Yes, the DMTH8008LFG-7 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions and ensure that the device is used within its specified parameters.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes or other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance.
