DN2625DK6-G - Microchip

Description: Microchip DN2625DK6-G N-channel MOSFET Transistor, 1.1 A, 250 V Depletion, 8-Pin DFN

Download DN2625DK6-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

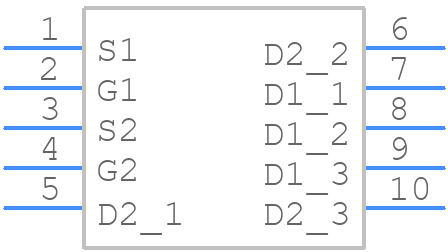

DN2625DK6-G - Microchip - PCB symbol
click to zoom
PCB Footprints
DN2625DK6-G - Microchip PCB footprint - Other - Other - DN2625DK6-G-3
click to zoom
3D Models
DN2625DK6-G - Microchip - 3D model - Other - DN2625DK6-G-3
click to zoom

DN2625DK6-G Details

  • Manufacturer Part Number:

    DN2625DK6-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    LOW THRESHOLD

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    250 V

  • Drain Current-Max (ID):

    1.1 A

  • Drain-source On Resistance-Max:

    3.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    3.3 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    30 ns

  • Turn-on Time-Max (ton):

    30 ns
