The thermal resistance (Rth) of the DNL10S0A0R16NFD is typically around 1.5°C/W (junction-to-case) and 10°C/W (junction-to-ambient) with a recommended heat sink.
Yes, the DNL10S0A0R16NFD is designed for high-reliability applications, with a MTBF (Mean Time Between Failures) of over 1 million hours at 40°C, making it suitable for critical systems.
To ensure the DNL10S0A0R16NFD operates within its SOA, follow the recommended operating conditions, derate the power dissipation according to the temperature, and use a suitable heat sink to maintain a safe junction temperature.
For optimal thermal performance, use a multi-layer PCB with a solid ground plane, place the heat sink close to the device, and ensure good thermal conductivity between the device and the heat sink. Consult the datasheet and application notes for more detailed guidelines.
Yes, the DNL10S0A0R16NFD can be used in a parallel configuration to increase power output, but it's essential to ensure proper current sharing, thermal management, and synchronization to avoid oscillations and instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DNL10S0A0R16NFD Overview

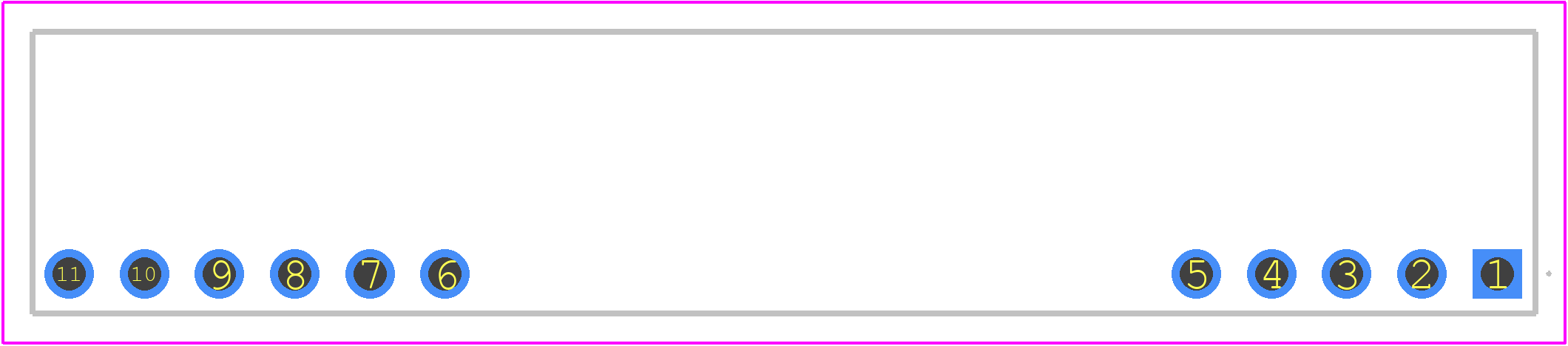

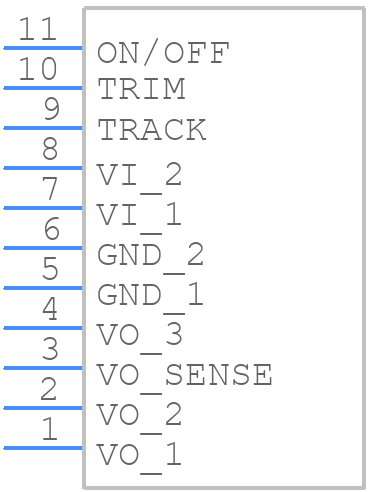

Use the download button to access the DNL10S0A0R16NFD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DNL10,
or try a keyword search, such as Power Supply Modules
