DNS10S0A0R06NFD - Delta Electronics

Description: Non-Isolated DC/DC Converters DOSA POL I DC/DC Module, 6A

Download DNS10S0A0R06NFD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

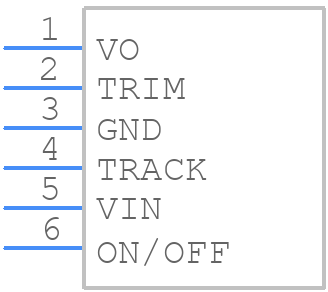

DNS10S0A0R06NFD - Delta Electronics - PCB symbol
click to zoom
PCB Footprints
DNS10S0A0R06NFD - Delta Electronics PCB footprint - Other - Other - DNS10S0A0R06NFD-3
click to zoom
3D Models
DNS10S0A0R06NFD - Delta Electronics - 3D model - Other - DNS10S0A0R06NFD-3
click to zoom

DNS10S0A0R06NFD Details

  • Manufacturer Part Number:

    DNS10S0A0R06NFD

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, SIP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE
