DO3308P-224MLD - COILCRAFT

Description: Power Inductors - SMD 220uH Unshld 20% 0.56A 1.6Ohms

Download DO3308P-224MLD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DO3308P-224MLD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

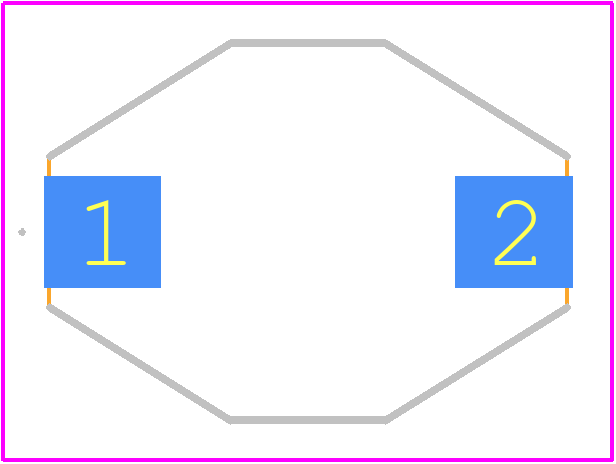

DO3308P-224MLD - COILCRAFT PCB footprint - Other - Other - DO3308P-224MLD-1
click to zoom
3D Models
DO3308P-224MLD - COILCRAFT - 3D model - Other - DO3308P-224MLD-1
click to zoom

DO3308P-224MLD Details

  • Manufacturer Part Number:

    DO3308P-224MLD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.1

  • Case/Size Code:

    5137

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    1.6 Ω

  • Inductance-Nom (L):

    220 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    3 mm

  • Package Length:

    12.95 mm

  • Package Style:

    SMT

  • Package Width:

    9.4 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    0.51 A

  • Self Resonance Frequency:

    6 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

DO3308P-224MLD Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DO3308P-224MLD can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint for optimal performance and reliability.
  • The DO3308P-224MLD has a maximum operating temperature of 125°C. Ensure that the PCB design and layout provide adequate thermal relief and heat dissipation to prevent overheating. A thermal via or thermal pad can be used to improve heat transfer.
  • The maximum current rating for the DO3308P-224MLD is 2.24A. However, the actual current handling capability may vary depending on the operating frequency, temperature, and other environmental factors. Consult the datasheet and application notes for more information.
  • The DO3308P-224MLD is a commercial-grade inductor, and its use in high-reliability or safety-critical applications may require additional testing and validation. Consult with Coilcraft Inc or a qualified reliability engineer to determine the suitability of the component for your specific application.
  • The DO3308P-224MLD is designed to meet general EMI requirements, but specific application requirements may vary. Consult with Coilcraft Inc or an EMI expert to determine the suitability of the component for your specific EMI requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DO3308P-224MLD Overview

Use the download button to access the DO3308P-224MLD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DO330, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
