DO3316T-222MLB - COILCRAFT

Description: Fixed Inductors 2.2uH Unshld 20% 7.4A 11mOhms AECQ2

Download DO3316T-222MLB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DO3316T-222MLB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

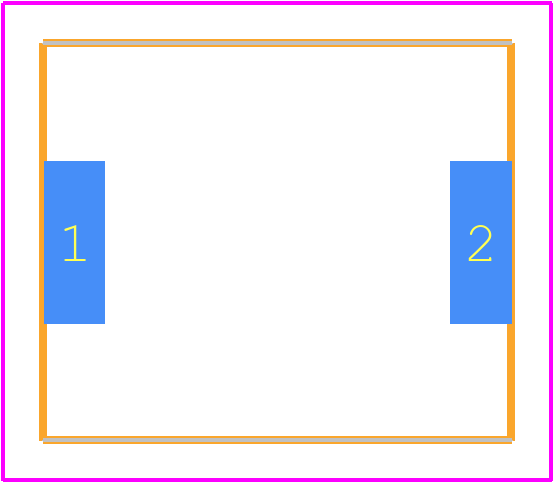

DO3316T-222MLB - COILCRAFT PCB footprint - Other - Other - DO3316T-222MLB-3
click to zoom
3D Models
DO3316T-222MLB - COILCRAFT - 3D model - Other - DO3316T-222MLB-3
click to zoom

DO3316T-222MLB Details

  • Manufacturer Part Number:

    DO3316T-222MLB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Case/Size Code:

    5239

  • Construction:

    Chip

  • Core Material:

    FERRITE

  • DC Resistance:

    0.011 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    6.35 mm

  • Package Length:

    13.21 mm

  • Package Style:

    SMT

  • Package Width:

    9.91 mm

  • Packing Method:

    TR

  • Rated Current-Max:

    7.4 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    90 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

DO3316T-222MLB Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the DO3316T-222MLB in their documentation, which includes a suggested pad layout and dimensions for optimal soldering and thermal performance.
  • The DO3316T-222MLB is rated for operation up to 125°C, but derating may be necessary for extended exposure to high temperatures. Consult Coilcraft's application notes for guidance on high-temperature operation.
  • The DO3316T-222MLB is a sensitive component and may be prone to mechanical stress damage. Handle the component with care, avoid bending or flexing the leads, and follow proper PCB assembly and mounting procedures to minimize stress.
  • The DO3316T-222MLB has a specified DC bias tolerance, but excessive DC bias can affect its performance and lifespan. Consult Coilcraft's application notes for guidance on DC bias tolerance and derating.
  • The DO3316T-222MLB is designed for high-frequency operation, but its performance may degrade at very high frequencies. Consult Coilcraft's application notes and simulation models to determine its suitability for your specific high-frequency application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DO3316T-222MLB Overview

Use the download button to access the DO3316T-222MLB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DO331, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
