The recommended termination impedance is 1 kΩ to ensure proper signal integrity and minimize reflections.
While the DOC052F-010.0M is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application's temperature requirements and potential derating factors to ensure reliable operation.
To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range, and that the oscillator is properly decoupled with a 10 nF to 100 nF capacitor between VCC and GND.
The typical current consumption of the DOC052F-010.0M is around 20 mA, but this can vary depending on the specific application, load, and operating conditions.
The DOC052F-010.0M has a typical jitter of 50 ps, which may not be suitable for extremely low-jitter applications. However, it can still be used in many applications where moderate jitter tolerance is acceptable.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DOC052F-010.0M Overview

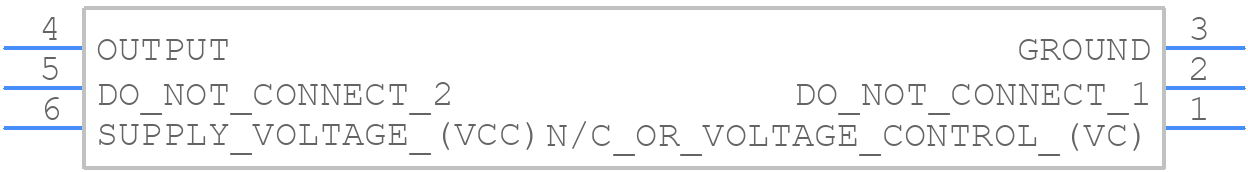

Use the download button to access the DOC052F-010.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DOC05,
or try a keyword search, such as OCXO
