DOT050F-010.0M footprint, schematic symbol and 3D model by Connor Winfield

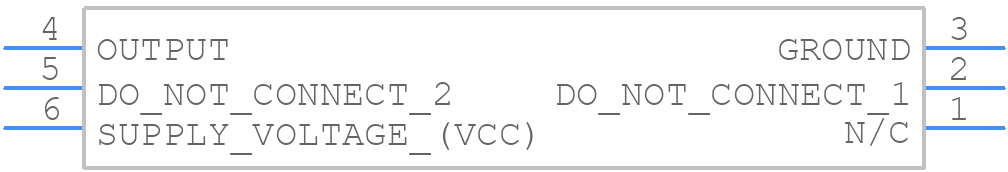

Symbol

PCB Footprints

3D Models

DOT050F-010.0M Details

The recommended operating temperature range for the DOT050F-010.0M is -40°C to +85°C.
To ensure reliable startup, make sure to decouple the power supply with a 10uF capacitor and provide a stable voltage supply within the recommended operating range.
The typical current consumption of the DOT050F-010.0M is around 10mA, but this can vary depending on the specific application and operating conditions.
Yes, the DOT050F-010.0M is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering procedures to ensure reliable operation.
The output frequency of the DOT050F-010.0M is fixed at 10.0MHz and cannot be adjusted. If you need a different frequency, consider using a different oscillator model or consulting with Connor-Winfield's application engineers.

Expert Contribution

System Verified

Community Approved

Use the download button to access the DOT050F-010.0M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DOT05, or try a keyword search, such as TCXO
