The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
While the DOT050F-020.0M is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application's temperature requirements and potential derating factors. Consult with Connor-Winfield or a qualified engineer for customized guidance.
Use a 0.01 μF to 0.1 μF decoupling capacitor between the VCC pin and GND to filter out noise and ensure a stable output signal.
The typical start-up time is around 5 ms to 10 ms, but this can vary depending on the specific application and power supply conditions.
The DOT050F-020.0M has a frequency tolerance of ±20 ppm. If your design requires a tighter frequency tolerance, consider using a more precise oscillator or consulting with Connor-Winfield for custom options.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DOT050F-020.0M Overview

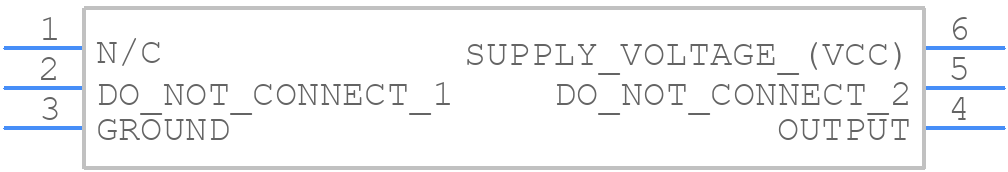

Use the download button to access the DOT050F-020.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DOT05,
or try a keyword search, such as TCXO
