DP-12UT-Q - Diptronics

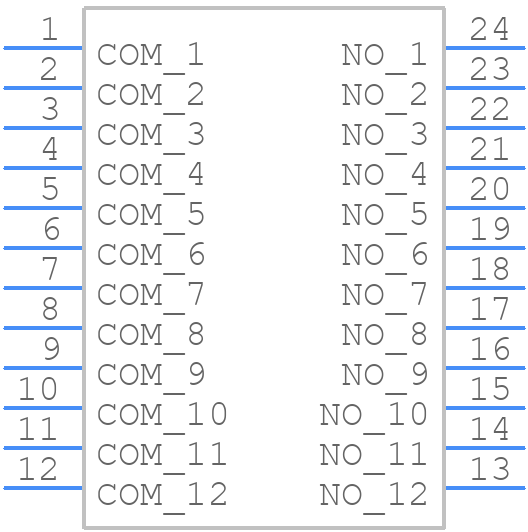

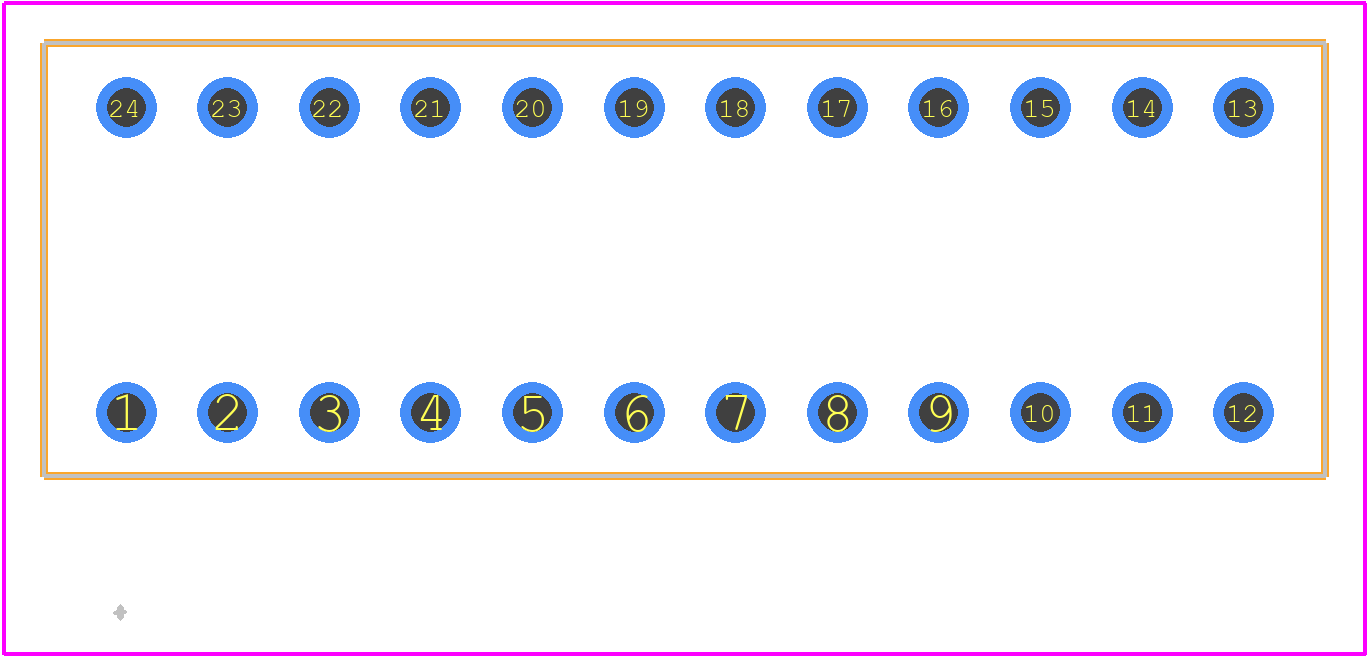

DP-12UT-Q Details

• Manufacturer Part Number:

  DP-12UT-Q

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Manufacturer:

  Diptronics Manufacturing Inc

• YTEOL:

  2

• Actuator Angle:

  30 deg

• Actuator Color:

  WHITE

• Actuator Type:

  PIANO TYPE

• Additional Feature:

  UL

• Body Breadth:

  10.287 mm

• Body Color:

  BLACK

• Body Height:

  10.795 mm

• Body Length or Diameter:

  32.0294 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  2000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD OVER NICKEL

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Hole Count:

  12

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  PIANO DIP SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.126 inch

• Termination Type:

  SOLDER
