DPA425R footprint, schematic symbol and 3D model by Power Integrations

Symbol

click to zoom

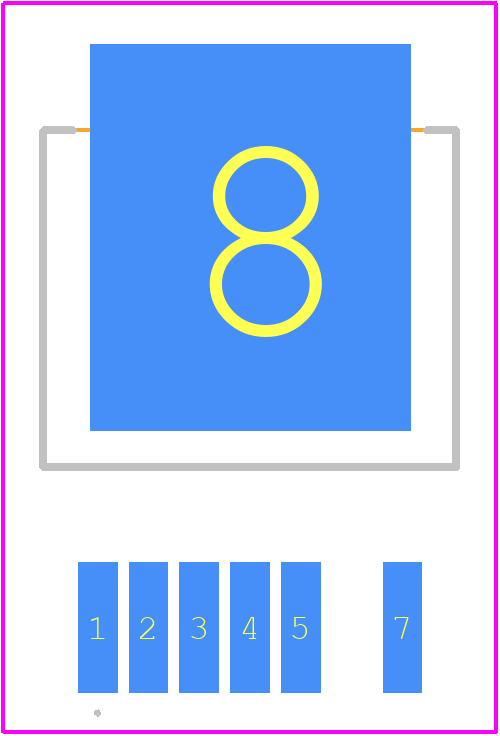

PCB Footprints

DPA425R - Power Integrations PCB footprint - Other - Other - TO-263-7C _ 2023

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DPA425R
Part Number DPA425R
Manufacturer Power Integrations
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TO-263-7C _ 2023
Released Date Aug 31, 2023
Last Modified Date Aug 31, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

DPA425R Details

Manufacturer Part Number:
DPA425R
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
D2PAK
Package Description:
PLASTIC, TO-263, 7 PIN
Pin Count:
4
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
8 Weeks
Manufacturer:
Power Integrations
Analog IC - Other Type:
SWITCHING CONTROLLER
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
JESD-30 Code:
R-PSSO-G6
JESD-609 Code:
e0
Length:
10.29 mm
Moisture Sensitivity Level:
4
Number of Functions:
1
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
225
Qualification Status:
Not Qualified
Seated Height-Max:
4.8 mm
Surface Mount:
YES
Switcher Configuration:
SINGLE
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Width:
8.407 mm

DPA425R Frequently Asked Questions (FAQs)

The DPA425R can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
Proper cooling can be achieved by using a heat sink with a thermal resistance of 10°C/W or less, and ensuring good airflow around the device.
A 2-layer or 4-layer PCB with a solid ground plane and a separate layer for the high-voltage traces is recommended. Keep the high-voltage traces short and away from sensitive analog circuits.
Use a voltage clamp or a transient voltage suppressor (TVS) to protect against overvoltage, and a fuse or a current-limiting resistor to protect against overcurrent.
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input filter capacitor, depending on the specific application requirements.

Trust Checks

Community Provided

System Verified

Community Approved

DPA425R Overview

Use the download button to access the DPA425R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DPA42, or try a keyword search, such as Switching Regulator or Controllers
