DPL12SV2424A25K2 - TE Connectivity

Description: Body Features: Shaft Style Knurled | Shaft Style Flatted | Product Orientation Vertical | Configuration Features: Adjustment Location Top | Adjustment Method Spindle | Number of Pulses 24 | Number of Detents 24 | Dimensions: Passive Component Dimensions 14.5 x 12.4 x 7 MM | Electrical Characteristics: Passive Component Switch Current Rating .01 AMP | Operation/Application: Operating Speed (Max) 60 RPM | Product Type Features: Passive Component Option Includes Switch | Rotary Encoder Switch Type Push Push SP

Download DPL12SV2424A25K2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DPL12SV2424A25K2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

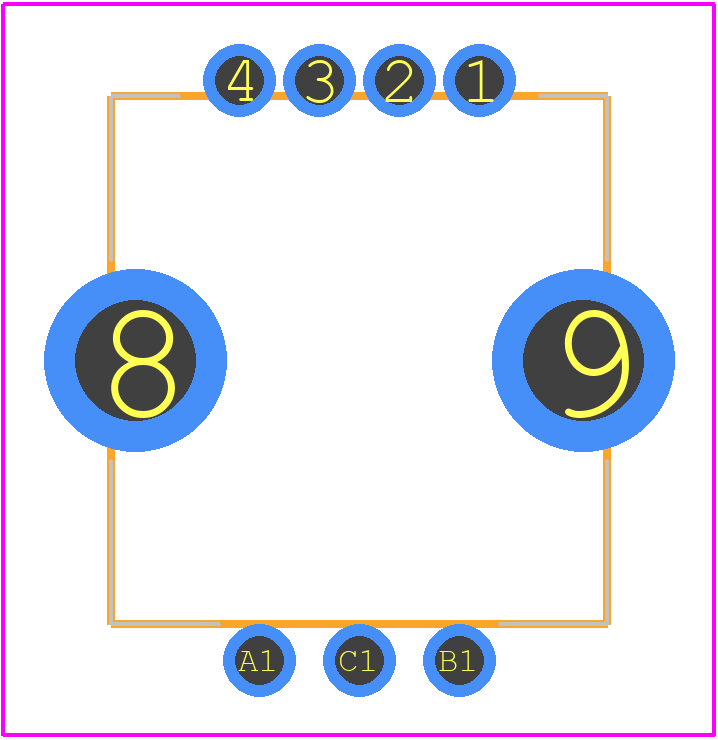

DPL12SV2424A25K2 - TE Connectivity PCB footprint - Other - Other - DPL12SV2424A25K2-2
click to zoom
3D Models
DPL12SV2424A25K2 - TE Connectivity - 3D model - Other - DPL12SV2424A25K2-2
click to zoom

DPL12SV2424A25K2 Details

  • Manufacturer Part Number:

    DPL12SV2424A25K2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Actuator Orientation:

    VERTICAL

  • Physical Dimension:

    14.5mm x 12.4mm x 7mm

  • Resistor Type:

    POTENTIOMETER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPL12SV2424A25K2 Overview

Use the download button to access the DPL12SV2424A25K2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPL12, or try a keyword search, such as Variable Resistors
