DPL12SVN24A21F1 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Shaft Style Flatted | Configuration Features: Number of Detents None | Adjustment Location Top | Adjustment Method Spindle | Number of Pulses 24 | Dimensions: Passive Component Dimensions 14.5 x 12.4 x 7 MM | Electrical Characteristics: Passive Component Switch Current Rating .01 AMP | Operation/Application: Operating Speed (Max) 60 RPM | Product Type Features: Encoder Type LED Encoder | Passive Component Option Includes Switch | Rotary Encoder Switch Type Push

Download DPL12SVN24A21F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DPL12SVN24A21F1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

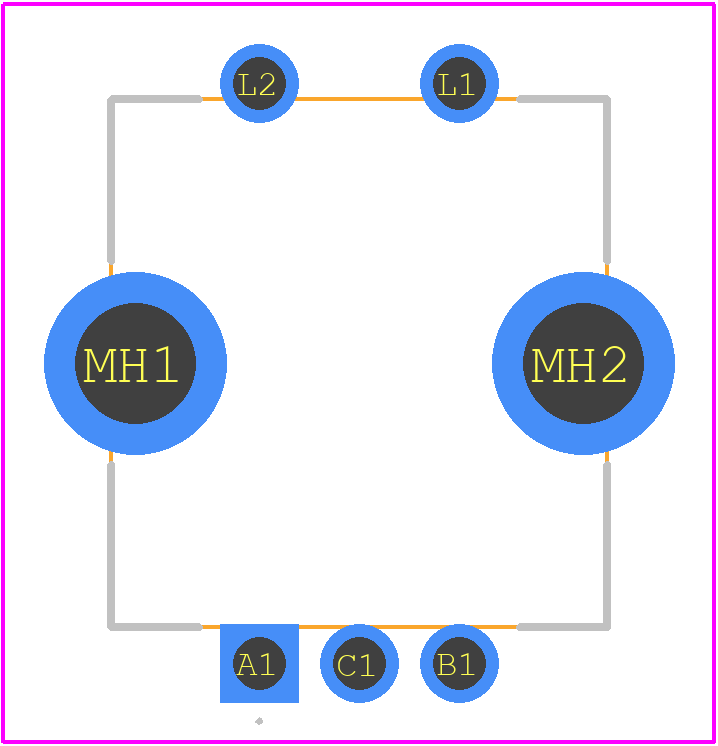

DPL12SVN24A21F1 - TE Connectivity PCB footprint - Other - Other - DPL12SVN24A21F1-1
click to zoom
3D Models
DPL12SVN24A21F1 - TE Connectivity - 3D model - Other - DPL12SVN24A21F1-1
click to zoom

DPL12SVN24A21F1 Details

  • Manufacturer Part Number:

    DPL12SVN24A21F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Actuator Orientation:

    VERTICAL

  • Physical Dimension:

    14.5mm x 12.4mm x 7mm

  • Resistor Type:

    POTENTIOMETER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPL12SVN24A21F1 Overview

Use the download button to access the DPL12SVN24A21F1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPL12, or try a keyword search, such as Variable Resistors
