DPS1113FIA-13 footprint, schematic symbol and 3D model by Diodes Incorporated

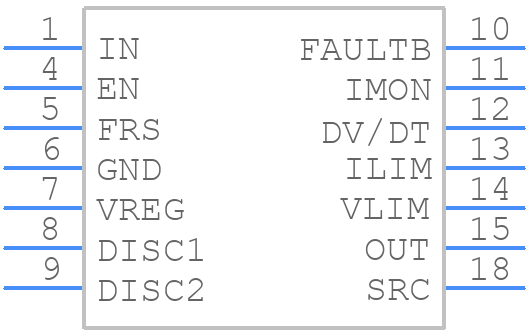

Symbol

click to zoom

PCB Footprints

DPS1113FIA-13 - Diodes Incorporated PCB footprint - Other - Other - V-QFN4040-17_2025-4

click to zoom

3D Models

DPS1113FIA-13 - Diodes Incorporated - 3D model - Other - V-QFN4040-17_2025-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DPS1113FIA-13
Part Number DPS1113FIA-13
Manufacturer Diodes Incorporated
Pin Count 14
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - V-QFN4040-17_2025-4
Released Date Nov 8, 2022
Last Modified Date Apr 26, 2025 12:22 PM UTC
Pinout / Pin List Click Here (Member Only)

DPS1113FIA-13 Details

Manufacturer Part Number:
DPS1113FIA-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-17
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Date Of Intro:
2017-08-16
Manufacturer:
Diodes Incorporated
YTEOL:
6
Built-in Protections:
OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
S-XXSS-N17
JESD-609 Code:
e4
Length:
4 mm
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
3.5 A
Package Body Material:
UNSPECIFIED
Package Code:
XSS
Package Shape:
SQUARE
Package Style:
SPECIAL SHAPE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.85 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
UNSPECIFIED
Width:
4 mm

DPS1113FIA-13 Frequently Asked Questions (FAQs)

A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the DPS1113FIA-13 to the ground plane. This helps to dissipate heat efficiently.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the output pin of the DPS1113FIA-13. Additionally, the input capacitor should be placed close to the input pin.
The maximum input voltage that can be applied to the DPS1113FIA-13 is 18V. Exceeding this voltage may damage the device.
The output voltage of the DPS1113FIA-13 can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (1.25V for the DPS1113FIA-13).
The maximum output current that the DPS1113FIA-13 can deliver is 3A. Exceeding this current may cause the device to overheat or fail.
