DPS310XTSA1 - Infineon

Description: INFINEON - DPS310XTSA1 - DIGITAL PRESSURE SENSOR, 1200HPA, VLGA-8

Download DPS310XTSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

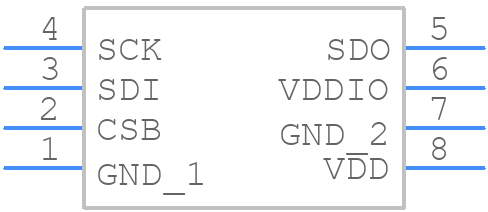

Symbol
DPS310XTSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
DPS310XTSA1 - Infineon PCB footprint - Other - Other - VLGA-8
click to zoom
3D Models
DPS310XTSA1 - Infineon - 3D model - Other - VLGA-8
click to zoom

DPS310XTSA1 Details

  • Manufacturer Part Number:

    DPS310XTSA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-8

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Body Breadth:

    2 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.345 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C/SPI

  • Output Range:

    0.24-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    17.4 Psi

  • Pressure Range-Min:

    4.35 Psi

  • Pressure Sensing Mode:

    BAROMETRIC

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

DPS310XTSA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the DPS310XTSA1 is to use a dedicated analog ground plane and to keep the analog and digital signals separate to minimize noise and interference.
  • The DPS310XTSA1 is calibrated during the manufacturing process, but users can perform a one-point calibration by applying a known pressure and adjusting the offset and sensitivity values accordingly.
  • The maximum operating temperature range for the DPS310XTSA1 is -40°C to 125°C, but the sensor's accuracy and stability may degrade at extreme temperatures.
  • The DPS310XTSA1 is not designed for use in humid or wet environments, and exposure to moisture can affect its accuracy and reliability. Users should ensure the sensor is properly sealed and protected from environmental factors.
  • The DPS310XTSA1's digital output is a 24-bit SPI interface, and users should ensure proper signal termination, clock synchronization, and data formatting to avoid data corruption and errors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPS310XTSA1 Overview

Use the download button to access the DPS310XTSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPS31, or try a keyword search, such as Pressure Sensors
