DPS368 - Infineon

Description: Infineon PRESSURE SENSOR 8-pin LGA, 2.0 x 2.5 x 1.1 mm3, min 1.7V, max 3.6V

Download DPS368 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

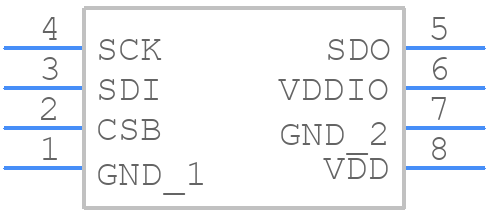

Symbol
DPS368 - Infineon - PCB symbol
click to zoom
PCB Footprints
DPS368 - Infineon PCB footprint - Other - Other - 8-pin PG-VLGA-8-2, 2.0 x 2.5 x 1.1 mm
click to zoom
3D Models
DPS368 - Infineon - 3D model - Other - 8-pin PG-VLGA-8-2, 2.0 x 2.5 x 1.1 mm
click to zoom

DPS368 Details

  • Manufacturer Part Number:

    DPS368

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Taiwan

  • Date Of Intro:

    2019-07-03

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Body Breadth:

    2 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Current-Max:

    0.345 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C/SPI

  • Output Range:

    0.24-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    17.4 Psi

  • Pressure Range-Min:

    4.35 Psi

  • Pressure Sensing Mode:

    BAROMETRIC

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

DPS368 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the DPS368 application note (AP3223) which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
  • The DPS368 does not require calibration in the classical sense. However, it's recommended to perform a one-time initialization procedure to set the internal calibration coefficients. This is described in the datasheet and application note.
  • The DPS368 is specified to operate from -40°C to 85°C, but it can tolerate storage temperatures from -40°C to 125°C. However, it's recommended to follow the reflow soldering temperature profile to avoid damaging the device.
  • The DPS368 is not designed to operate in humid or wet environments. It's recommended to use a protective coating or enclosure to prevent moisture ingress, as specified in the datasheet.
  • The DPS368's digital output is a 24-bit SPI interface. It's recommended to use a microcontroller or dedicated SPI interface to handle the data transmission and processing. The datasheet provides detailed information on the SPI protocol and timing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPS368 Overview

Use the download button to access the DPS368 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPS36, or try a keyword search, such as Pressure Sensors
