- Part Number DPS368XTSA1
- Manufacturer Infineon
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DPS368XTSA1-4
- Released Date Mar 31, 2020
- Last Modified Date Jun 25, 2024 8:10 AM UTC
- Pinout / Pin List Click Here (Member Only)
DPS368XTSA1 Details
-
Manufacturer Part Number:
DPS368XTSA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LGA-8
-
Country Of Origin:
Germany, Taiwan
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
9
-
Body Breadth:
2 mm
-
Body Height:
1.1 mm
-
Body Length or Diameter:
2.5 mm
DPS368XTSA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout and land pattern in the DPS368XTSA1 application note (AP32142) to ensure optimal performance and minimize noise coupling.
-
The DPS368XTSA1 requires individual calibration for high accuracy. Infineon provides a calibration procedure in the datasheet, which involves measuring the sensor's output at multiple pressure points and calculating the calibration coefficients.
-
The DPS368XTSA1 is specified to operate from -40°C to 85°C, but it can be extended to 125°C with reduced accuracy. However, it's essential to consider the temperature coefficient and compensation for accurate measurements.
-
To minimize noise and interference, use a low-pass filter, such as a RC filter, and ensure a stable power supply. Additionally, use a shielded cable and keep the sensor away from high-frequency sources.
-
The DPS368XTSA1 is not designed for use in humid or wet environments. It's essential to protect the sensor from moisture and condensation to prevent damage and ensure accurate measurements.
Trust Checks
Community Provided
System Verified
Community Approved
DPS368XTSA1 Overview

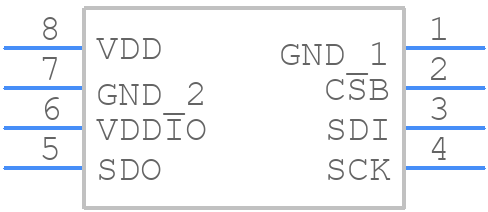

Use the download button to access the DPS368XTSA1 schematic symbol, PCB footprint, and 3D model.
