The recommended land pattern for the DPX162170DT-8122B1 can be found in the TDK Corporation's recommended footprint document or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, it's recommended to handle the DPX162170DT-8122B1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Additionally, follow proper soldering techniques and temperatures to prevent thermal damage.
While the datasheet provides the recommended operating temperature range, the maximum operating temperature range for the DPX162170DT-8122B1 is typically -40°C to +125°C. However, it's essential to note that operating the component at extreme temperatures may affect its performance, reliability, and lifespan.
The DPX162170DT-8122B1 is designed to meet the requirements of various industries, including automotive and industrial applications. However, it's crucial to evaluate the component's performance in your specific high-vibration or high-shock environment. Consult with TDK Corporation's technical support team or perform thorough testing to ensure the component meets your application's requirements.
The DPX162170DT-8122B1 has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before soldering. It's essential to follow proper storage and handling procedures to prevent moisture absorption and ensure reliable soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX162170DT-8122B1 Overview

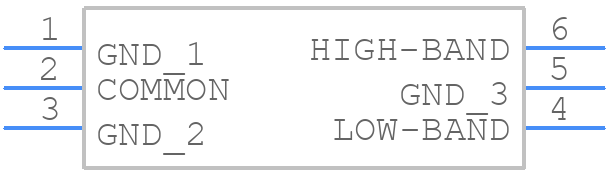

Use the download button to access the DPX162170DT-8122B1 schematic symbol, PCB footprint, and 3D model.
