The recommended land pattern for the DPX162500DT-8028A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the DPX162500DT-8028A1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or tables to prevent electrostatic discharge. Store the components in their original packaging or in a dry, ESD-protected environment.
The thermal resistance of the DPX162500DT-8028A1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance value of approximately 10°C/W (junction-to-ambient) for similar products. For precise thermal design, consult with TDK Corporation's application engineers or refer to the device's thermal modeling data.
The DPX162500DT-8028A1 is designed to withstand moderate vibration. However, for high-vibration environments, it's recommended to consult with TDK Corporation's application engineers to discuss specific requirements and potential customization options. Additionally, ensure that the component is properly secured to the PCB using recommended mounting methods.
The recommended soldering profile for the DPX162500DT-8028A1 follows the IPC-J-STD-020 standard. A typical reflow soldering profile includes a peak temperature of 260°C, with a dwell time above 220°C of 20-30 seconds. Consult the datasheet or TDK Corporation's application note for more detailed information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX162500DT-8028A1 Overview

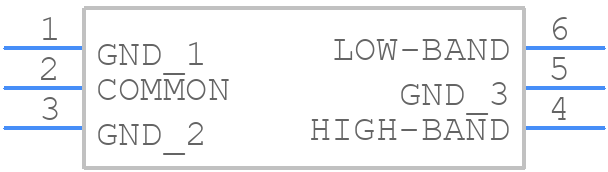

Use the download button to access the DPX162500DT-8028A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
