DPX162690DT-8022B2 - TDK

Description: Diplexers, Pass Band/Low Band=704 to 960MHz, Pass Band/High Band=1710 to 2690MHz

Download DPX162690DT-8022B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

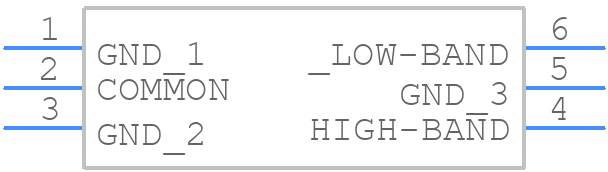

DPX162690DT-8022B2 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX162690DT-8022B2 - TDK PCB footprint - Other - Other - DPX162690DT-8022B2-2
click to zoom
3D Models
DPX162690DT-8022B2 - TDK - 3D model - Other - DPX162690DT-8022B2-2
click to zoom

DPX162690DT-8022B2 Details

  • Manufacturer Part Number:

    DPX162690DT-8022B2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    2200 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.6 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.6 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    0.8 mm
