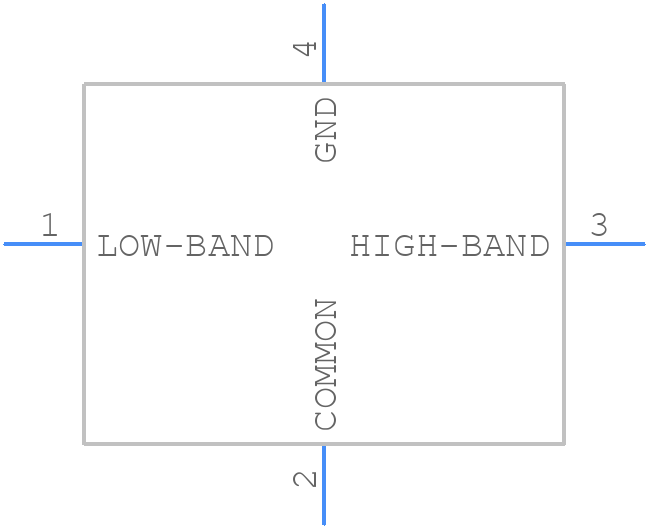

DPX165850DT-8032A1 - TDK

DPX165850DT-8032A1 Frequently Asked Questions (FAQs)

• What is the recommended land pattern for the DPX165850DT-8032A1?
  The recommended land pattern for the DPX165850DT-8032A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
• How do I handle the DPX165850DT-8032A1 during assembly to prevent damage?
  To prevent damage, handle the DPX165850DT-8032A1 by the edges, avoid touching the pins, and use an anti-static wrist strap or mat. It's also recommended to follow the ESD handling procedures outlined in the IEC 61340-5-1 standard.
• What is the thermal resistance of the DPX165850DT-8032A1?
  The thermal resistance of the DPX165850DT-8032A1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance value of 25°C/W (junction-to-ambient) in their application note or technical support documentation.
• Can I use the DPX165850DT-8032A1 in a high-vibration environment?
  The DPX165850DT-8032A1 is designed to withstand certain levels of vibration. However, it's essential to consult with TDK Corporation's technical support or refer to their application note for specific vibration testing and validation guidelines.
• What is the recommended soldering profile for the DPX165850DT-8032A1?
  The recommended soldering profile for the DPX165850DT-8032A1 follows the IPC-J-STD-020 standard. A typical reflow soldering profile includes a peak temperature of 240°C to 245°C, with a dwell time of 30-60 seconds above 217°C.
