The recommended land pattern for the DPX165900DT-8125A1 can be found in the TDK Corporation's application note or by contacting their technical support team. The land pattern should be designed to ensure proper thermal management and minimize thermal resistance.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines, ensure proper thermal management, and consider using a thermal interface material (TIM) to minimize thermal resistance. Additionally, consider using a heat sink or a cooling system to maintain a safe operating temperature.
The maximum allowable voltage derating for the DPX165900DT-8125A1 can be found in the datasheet or by contacting TDK Corporation's technical support team. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and minimize the risk of electrical overstress.
The DPX165900DT-8125A1 is designed to operate in a normal humidity environment. If you plan to use it in a high-humidity environment, you should consider applying a conformal coating or using a moisture-resistant package to prevent moisture ingress. Consult with TDK Corporation's technical support team for specific guidance.
The recommended storage condition for the DPX165900DT-8125A1 is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -20°C to 40°C, and the relative humidity should be below 60%. Avoid storing the components in a location with high temperatures, high humidity, or exposure to chemicals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX165900DT-8125A1 Overview

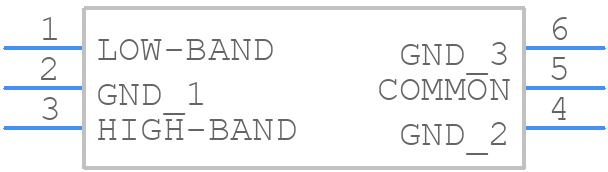

Use the download button to access the DPX165900DT-8125A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
