The recommended land pattern for the DPX165950DT-8060A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the DPX165950DT-8060A1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Also, avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the DPX165950DT-8060A1 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation's technical support for specific derating guidelines for your application.
The DPX165950DT-8060A1 is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation in high-temperature environments.
To determine the correct current rating, consider the component's maximum current rating, the application's operating frequency, and the PCB's thermal design. Consult the datasheet and application notes for guidance on current rating selection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX165950DT-8060A1 Overview

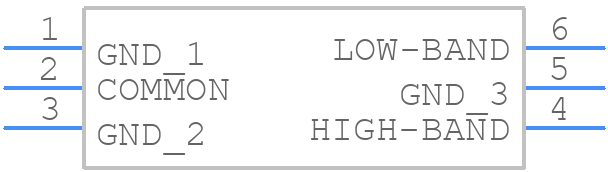

Use the download button to access the DPX165950DT-8060A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
