TDK provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
Proper thermal management is crucial to prevent overheating and ensure reliability. TDK recommends using a thermal pad or heat sink, and ensuring good airflow around the inductor. The datasheet provides thermal resistance and maximum operating temperature ratings to help with thermal design.
While the datasheet provides rated voltage and current values, it's essential to consider derating factors such as temperature, frequency, and waveform to determine the maximum allowable voltage and current. TDK's application notes or technical support can provide guidance on derating factors.
The datasheet provides inductance and impedance values at specific frequencies, but high-frequency behavior may vary. TDK's simulation models or S-parameters can help engineers analyze the inductor's behavior in high-frequency applications. Additionally, TDK's technical support can provide guidance on high-frequency design considerations.
The datasheet may not provide explicit EMI shielding or filtering requirements, but TDK's application notes or design guides can offer guidance on EMI mitigation techniques, such as shielding, filtering, or layout considerations, to ensure compliance with regulatory requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX201880DT-4061A2 Overview

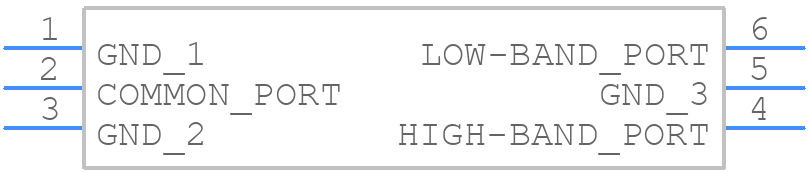

Use the download button to access the DPX201880DT-4061A2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
