DPX202690DT-4084A5 - TDK

Description: Diplexers, Pass Band/Low Band=1710 to 2200MHz, Pass Band/High Band=2496 to 3800MHz

Download DPX202690DT-4084A5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

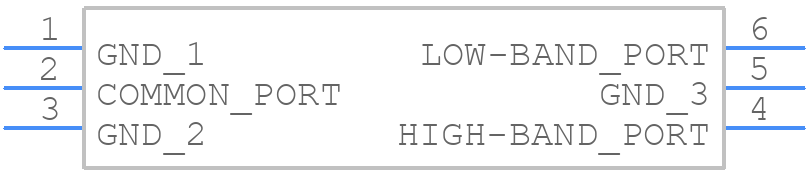

Symbol
DPX202690DT-4084A5 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX202690DT-4084A5 - TDK PCB footprint - Other - Other - DPX202690DT-4084A5-1
click to zoom
3D Models
DPX202690DT-4084A5 - TDK - 3D model - Other - DPX202690DT-4084A5-1
click to zoom

DPX202690DT-4084A5 Details

  • Manufacturer Part Number:

    DPX202690DT-4084A5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 6 PIN

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    3148 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.9 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.05 dB

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Terminal Finish:

    Tin (Sn)

  • Width:

    1.25 mm

DPX202690DT-4084A5 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The DPX202690DT-4084A5 is designed to minimize EMI and high-frequency noise. TDK's proprietary technology and internal shielding help to reduce radiation and susceptibility to external noise. However, additional PCB-level design considerations and filtering may still be necessary to meet specific application requirements.
  • While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation within the desired temperature range. TDK provides thermal resistance and derating information in the datasheet and application notes.
  • The DPX202690DT-4084A5 is designed to meet specific vibration and shock requirements. However, it's crucial to evaluate the component's performance in the specific application environment. TDK provides vibration and shock testing data, and engineers should consult with TDK or perform their own testing to ensure the component meets the required specifications.
  • TDK provides guidelines for handling and storage in their datasheet and application notes. It's essential to follow these guidelines to prevent damage from electrostatic discharge (ESD), moisture, and mechanical stress. Proper handling and storage can help ensure the component's reliability and performance over its lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX202690DT-4084A5 Overview

Use the download button to access the DPX202690DT-4084A5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20, or try a keyword search, such as General Purpose Passive Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
