The recommended land pattern for the DPX202700DT-4035B5 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the DPX202700DT-4035B5 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow the JEDEC standard JESD625-A for handling and storage guidelines.
The thermal resistance of the DPX202700DT-4035B5 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance value of approximately 10°C/W (junction-to-ambient) for similar products. For a more accurate value, contact TDK Corporation's technical support or consult the product's thermal management application note.
The DPX202700DT-4035B5 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult TDK Corporation's vibration testing standards and guidelines. Additional mechanical fixation or potting may be necessary to ensure the component's reliability in such environments.
The recommended reflow soldering profile for the DPX202700DT-4035B5 follows the JEDEC standard J-STD-020D. A typical profile includes a peak temperature of 260°C, with a ramp-up rate of 3°C/s, a dwell time of 30-60 seconds, and a cool-down rate of 6°C/s. Consult the datasheet or TDK Corporation's application note for more detailed information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX202700DT-4035B5 Overview

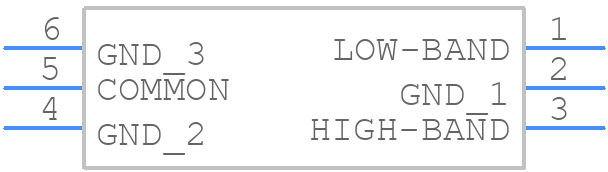

Use the download button to access the DPX202700DT-4035B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
