The recommended land pattern for the DPX202700DT-4062A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the DPX202700DT-4062A1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Also, avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the DPX202700DT-4062A1 depends on the specific application and operating conditions. As a general guideline, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent overheating or electrical stress.
The DPX202700DT-4062A1 is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the PCB's thermal design when using it in high-temperature applications. Ensure that the component is properly heat-sunk and that the operating temperature is within the specified range.
To troubleshoot issues with the DPX202700DT-4062A1, start by verifying the component's soldering and assembly. Check for signs of overheating, electrical overstress, or physical damage. Use diagnostic tools like oscilloscopes or logic analyzers to identify signal integrity issues. Consult the datasheet and application notes for guidance on troubleshooting and fault-finding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX202700DT-4062A1 Overview

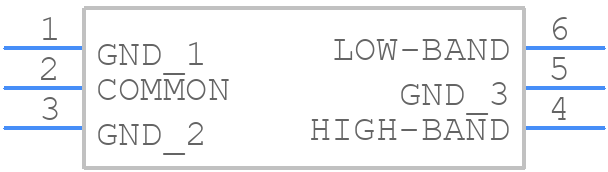

Use the download button to access the DPX202700DT-4062A1 schematic symbol, PCB footprint, and 3D model.
