The recommended land pattern for the DPX204752DT-4028A1 can be found in the TDK Corporation's application note or footprint recommendation document, which provides detailed information on the recommended pad layout, size, and spacing for optimal performance and reliability.
The DPX204752DT-4028A1 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, or heat sinks to dissipate heat, and ensure good airflow around the component. Additionally, they should follow the recommended operating temperature range and derating guidelines provided in the datasheet.
The maximum allowable voltage derating for the DPX204752DT-4028A1 depends on the specific application and operating conditions. As a general rule, engineers should derate the voltage by 10-20% to ensure reliable operation and to account for voltage spikes or transients. However, it's recommended to consult with TDK Corporation's application engineers or refer to the datasheet for specific derating guidelines.
The DPX204752DT-4028A1 is designed for high-frequency applications, but its performance may degrade at very high frequencies (e.g., above 1 GHz). Engineers should consult the datasheet and evaluate the component's performance at the desired frequency range to ensure it meets their application requirements.
To ensure proper soldering and assembly of the DPX204752DT-4028A1, engineers should follow the recommended soldering profile and temperature guidelines provided in the datasheet. They should also use a soldering iron with a suitable tip size and shape, and ensure the component is properly aligned and secured during the assembly process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX204752DT-4028A1 Overview

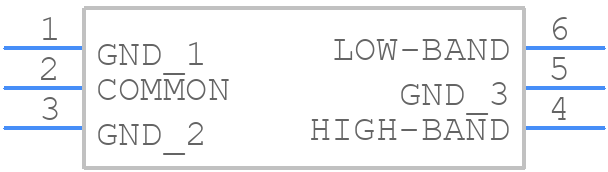

Use the download button to access the DPX204752DT-4028A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
