DPX205850DT-4054B1 - TDK

Description: Diplexers, Pass Band/Low Band=800 to 2170MHz, Pass Band/High Band=2400 to 5850MHz

Download DPX205850DT-4054B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

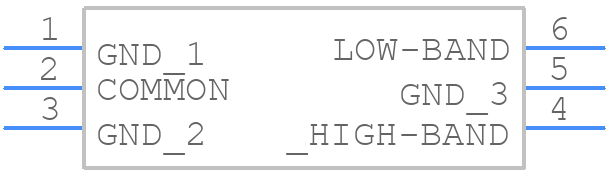

Symbol
DPX205850DT-4054B1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX205850DT-4054B1 - TDK PCB footprint - Other - Other - DPX205850DT-4054B1-1
click to zoom
3D Models
DPX205850DT-4054B1 - TDK - 3D model - Other - DPX205850DT-4054B1-1
click to zoom

DPX205850DT-4054B1 Details

  • Manufacturer Part Number:

    DPX205850DT-4054B1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 6 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    4125 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.9 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    1.25 mm

DPX205850DT-4054B1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX205850DT-4054B1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the DPX205850DT-4054B1 by the edges to prevent damage to the pins or the package. Avoid touching the pins or the package body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat to discharge static electricity.
  • The maximum allowable voltage derating for the DPX205850DT-4054B1 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation's technical support for specific derating guidelines.
  • The DPX205850DT-4054B1 is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
  • Store the DPX205850DT-4054B1 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 60%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX205850DT-4054B1 Overview

Use the download button to access the DPX205850DT-4054B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20, or try a keyword search, such as General Purpose Passive Filters
