TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The voltage rating of the DPX205850DT-4054B5 should be selected based on the maximum voltage seen across the capacitor in the application. Consider factors like voltage derating, ripple voltage, and surge voltage to ensure the capacitor can handle the maximum voltage stress.
The ESR of the DPX205850DT-4054B5 is not explicitly stated in the datasheet. However, TDK provides ESR values for similar capacitors in their product families. Engineers can contact TDK's technical support or consult their application notes to determine the ESR value and its impact on their design.
The DPX205850DT-4054B5 has a rated operating temperature range of -55°C to +125°C. While it can be used in high-temperature applications, engineers should consider the capacitor's derating curves, reliability, and potential degradation over time. It's essential to consult TDK's application notes and technical support for guidance on high-temperature applications.
Engineers should consider factors like operating temperature, voltage stress, and ripple current to ensure the capacitor meets their application's reliability and lifespan requirements. TDK provides reliability data and guidelines in their application notes and technical support resources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX205850DT-4054B5 Overview

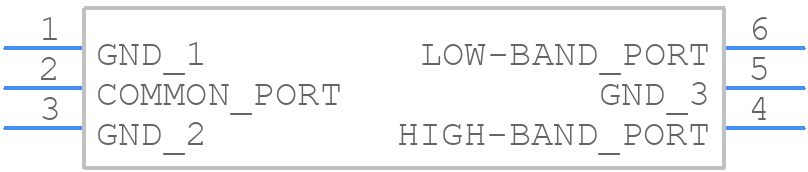

Use the download button to access the DPX205850DT-4054B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20,
or try a keyword search, such as Duplexers
