DPX205950DT-9026A1 - TDK

Description: Diplexers, Pass Band/Low Band=2400 to 2500MHz, Pass Band/High Band=4900 to 5950MHz

Download DPX205950DT-9026A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

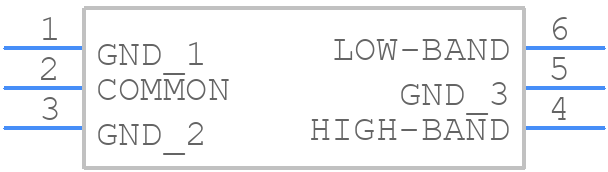

Symbol
DPX205950DT-9026A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX205950DT-9026A1 - TDK PCB footprint - Other - Other - DPX205950DT-9026A1-1
click to zoom
3D Models
DPX205950DT-9026A1 - TDK - 3D model - Other - DPX205950DT-9026A1-1
click to zoom

DPX205950DT-9026A1 Details

  • Manufacturer Part Number:

    DPX205950DT-9026A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 6 PIN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

  • Center or Cutoff Frequency (fo/fc):

    5425 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.5 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.65 dB

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    1.25 mm

DPX205950DT-9026A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX205950DT-9026A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
  • To prevent damage, handle the DPX205950DT-9026A1 by the edges, avoid touching the pins, and use an anti-static wrist strap or mat. It's also recommended to follow the ESD handling procedures outlined in the IEC 61340-5-1 standard.
  • The thermal resistance of the DPX205950DT-9026A1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance calculator on their website, which can be used to estimate the thermal resistance based on the device's package and application.
  • The DPX205950DT-9026A1 is designed to withstand certain levels of vibration, but the specific vibration limits are not specified in the datasheet. It's recommended to consult with TDK Corporation's application engineers or refer to the device's reliability report to determine its suitability for high-vibration environments.
  • The recommended soldering profile for the DPX205950DT-9026A1 can be found in the TDK Corporation's soldering guidelines or the IPC-J-STD-020 standard. It's essential to follow a controlled soldering profile to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX205950DT-9026A1 Overview

Use the download button to access the DPX205950DT-9026A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20, or try a keyword search, such as General Purpose Passive Filters
