DPX205950DT-9108A1 - TDK

Description: Diplexers, Pass Band/Low Band=2300 to 2500MHz, Pass Band/High Band=4900 to 5950MHz

Download DPX205950DT-9108A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

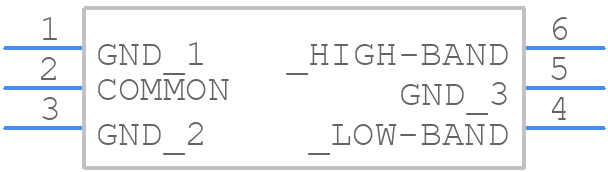

DPX205950DT-9108A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX205950DT-9108A1 - TDK PCB footprint - Other - Other - DPX205950DT-9108A1-1
click to zoom
3D Models
DPX205950DT-9108A1 - TDK - 3D model - Other - DPX205950DT-9108A1-1
click to zoom

DPX205950DT-9108A1 Details

  • Manufacturer Part Number:

    DPX205950DT-9108A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    EIA STD PACKAGE SIZE 0805, 6 PIN

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    5425 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.95 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.6 dB

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    1.25 mm

DPX205950DT-9108A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX205950DT-9108A1 can be found in the TDK Corporation's application note or can be obtained by contacting TDK's technical support team. The land pattern is critical to ensure proper mounting and thermal performance of the device.
  • Proper thermal management is crucial for the DPX205950DT-9108A1. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink with a thermal resistance of 10°C/W or lower. Also, maintain a maximum junction temperature of 125°C to ensure reliable operation.
  • The maximum allowed voltage derating for the DPX205950DT-9108A1 is typically 80% of the rated voltage. However, it's recommended to consult with TDK Corporation's technical support team or refer to the device's application note for specific derating guidelines.
  • The DPX205950DT-9108A1 is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with TDK Corporation's technical support team to discuss the feasibility of using this device in such applications.
  • To ensure the authenticity of the DPX205950DT-9108A1, purchase the device from authorized distributors or directly from TDK Corporation. Be cautious of extremely low prices or unusual packaging. Verify the device's markings, packaging, and documentation to ensure they match TDK Corporation's specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX205950DT-9108A1 Overview

Use the download button to access the DPX205950DT-9108A1 schematic symbol, PCB footprint, and 3D model.
