DPX209504DT-4183A1 - TDK

Description: Multilayer Diplexer Signal Conditioning LTCC DIPLEXER 3.2-4.8/6.4-9.5GHz 0805 (2012 Metric), 6 PC Pad

Download DPX209504DT-4183A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

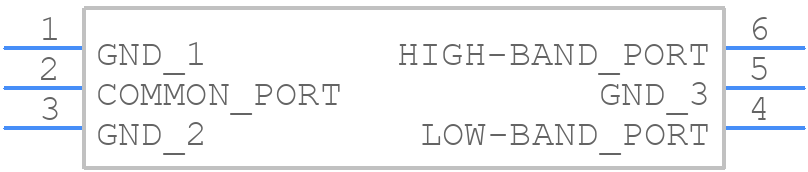

DPX209504DT-4183A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX209504DT-4183A1 - TDK PCB footprint - Other - Other - DPX209504DT-4183A1
click to zoom
3D Models
DPX209504DT-4183A1 - TDK - 3D model - Other - DPX209504DT-4183A1
click to zoom

DPX209504DT-4183A1 Details

  • Manufacturer Part Number:

    DPX209504DT-4183A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Center or Cutoff Frequency (fo/fc):

    7920 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.6 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.85 dB

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Screening Level:

    MIL-STD-883D

  • Terminal Finish:

    NOT SPECIFIED

  • VSWR:

    2.2

  • Width:

    1.25 mm

DPX209504DT-4183A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX209504DT-4183A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • The DPX209504DT-4183A1 is a moisture-sensitive device. It's recommended to store it in a dry environment (less than 20% RH) and to follow the MSL (Moisture Sensitivity Level) guidelines for handling and storage. Baking the component before reflow soldering may be necessary to prevent damage.
  • The thermal resistance of the DPX209504DT-4183A1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal model or a thermal resistance value (Rth) in the component's simulation model or upon request. This information can be used to estimate the junction temperature and ensure reliable operation.
  • The DPX209504DT-4183A1 is designed to withstand certain levels of vibration. However, it's essential to consult TDK Corporation's application notes or contact their support team to determine the component's vibration tolerance and ensure it meets the specific requirements of your application.
  • The recommended reflow soldering profile for the DPX209504DT-4183A1 can be found in the TDK Corporation's application note or the IPC-J-STD-020 standard. It's crucial to follow the recommended profile to prevent damage to the component and ensure reliable solder joints.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX209504DT-4183A1 Overview

Use the download button to access the DPX209504DT-4183A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX20, or try a keyword search, such as General Purpose Passive Filters
