TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
Proper thermal management is crucial to prevent overheating and ensure reliability. TDK recommends using a thermal pad or thermal interface material (TIM) to improve heat dissipation. Additionally, ensure good airflow around the inductor and avoid blocking the airflow path.
While the datasheet specifies the maximum rated voltage, it's essential to derate the voltage to ensure reliable operation. As a general rule, TDK recommends derating the voltage by 10-20% to account for voltage spikes, noise, and other environmental factors.
While the DPX250894DT-5025A1 is designed for high-frequency applications, its performance may degrade above 1 MHz. TDK recommends consulting their high-frequency inductor series or contacting their technical support for guidance on selecting the most suitable inductor for high-frequency applications.
To ensure effective magnetic shielding, TDK recommends using a shielded inductor like the DPX250894DT-5025A1, which has a built-in magnetic shield. Additionally, follow proper PCB layout and design guidelines to minimize the impact of external magnetic fields.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX250894DT-5025A1 Overview

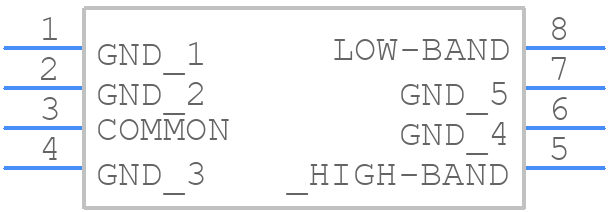

Use the download button to access the DPX250894DT-5025A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
