Part Image

DPX252690DT-5021B1 - TDK

Description: Diplexers, Pass Band/Low Band=698 to 960MHz, Pass Band/High Band=1710 to 2690MHz

Download DPX252690DT-5021B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

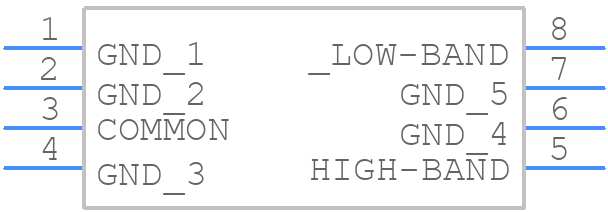

Symbol
DPX252690DT-5021B1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX252690DT-5021B1 - TDK PCB footprint - Other - Other - DPX252690DT-5021B1-1
click to zoom
3D Models
DPX252690DT-5021B1 - TDK - 3D model - Other - DPX252690DT-5021B1-1
click to zoom

DPX252690DT-5021B1 Details

  • Manufacturer Part Number:

    DPX252690DT-5021B1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    EIA STD PACKAGE SIZE 1008, 8 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Average Input Power:

    3 W

  • Center or Cutoff Frequency (fo/fc):

    2200 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.55 dB

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    2 mm

DPX252690DT-5021B1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX252690DT-5021B1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
  • To prevent damage, handle the DPX252690DT-5021B1 by the edges, avoid touching the pins or components, and use an anti-static wrist strap or mat. It's also recommended to follow the ESD handling procedures outlined in the IEC 61340-5-1 standard.
  • The thermal resistance of the DPX252690DT-5021B1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance value of approximately 10°C/W for similar products. It's recommended to consult with TDK Corporation's technical support or application notes for more specific information.
  • The DPX252690DT-5021B1 is designed to withstand certain levels of vibration. However, it's essential to consult with TDK Corporation's technical support to determine the specific vibration limits and ensure the component meets the requirements of your application.
  • The MSL of the DPX252690DT-5021B1 is typically level 3, which means it can withstand a maximum exposure of 168 hours at 30°C and 60% relative humidity. However, it's recommended to consult with TDK Corporation's technical support for specific information on the MSL rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX252690DT-5021B1 Overview

Use the download button to access the DPX252690DT-5021B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25, or try a keyword search, such as General Purpose Passive Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
