The recommended land pattern for the DPX252690DT-5042B2 can be found in the TDK Corporation's application note or footprint library, which provides detailed information on the recommended pad layout and dimensions for optimal soldering and reliability.
To prevent damage, it is recommended to handle the DPX252690DT-5042B2 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow standard assembly and handling procedures for sensitive electronic components.
While the datasheet provides the recommended operating temperature range, the maximum operating temperature range for the DPX252690DT-5042B2 is typically -40°C to +125°C. However, it's essential to consult with TDK Corporation or a qualified engineer to determine the specific temperature range for your application.
The DPX252690DT-5042B2 is designed to meet standard vibration and shock requirements, but it's essential to consult with TDK Corporation or a qualified engineer to determine the component's suitability for your specific application. Additional testing or customization may be required to ensure reliability in high-vibration or high-shock environments.
The DPX252690DT-5042B2 has a moisture sensitivity level (MSL) rating of 3, which means it can withstand a certain level of moisture exposure during assembly. However, it's essential to follow proper storage and handling procedures to prevent moisture damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX252690DT-5042B2 Overview

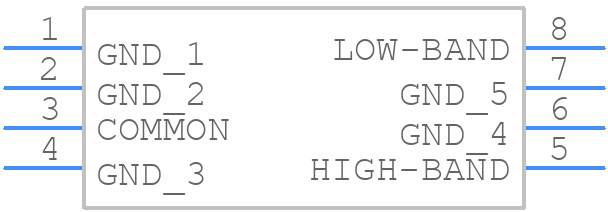

Use the download button to access the DPX252690DT-5042B2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25,
or try a keyword search, such as General Purpose Passive Filters
