DPX252690DT-5072A1 - TDK

Description: Diplexers, Pass Band/Low Band=617 to 960MHz, Pass Band/High Band=1452 to 2690MHz

Download DPX252690DT-5072A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

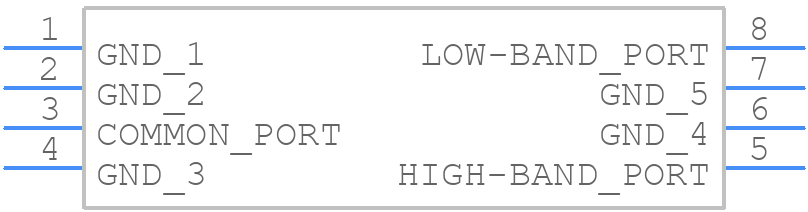

Symbol
DPX252690DT-5072A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX252690DT-5072A1 - TDK PCB footprint - Other - Other - DPX252690DT-5072A1-2
click to zoom
3D Models
DPX252690DT-5072A1 - TDK - 3D model - Other - DPX252690DT-5072A1-2
click to zoom

DPX252690DT-5072A1 Details

  • Manufacturer Part Number:

    DPX252690DT-5072A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1008, 8 PIN

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

DPX252690DT-5072A1 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The DPX252690DT-5072A1 is designed to minimize EMI and high-frequency noise. TDK's proprietary technology and internal shielding help to reduce radiation and susceptibility to external noise. However, additional PCB-level design considerations, such as proper grounding and shielding, are still necessary to ensure optimal performance.
  • While the datasheet provides a recommended operating temperature range, it's essential to note that the component can tolerate a wider temperature range for short periods. However, prolonged exposure to extreme temperatures may affect the component's reliability and lifespan. Consult with TDK's application engineers or technical support for specific guidance.
  • The DPX252690DT-5072A1 is designed to meet standard reliability requirements, but it may not be suitable for extreme vibration or shock environments. TDK provides specialized components for harsh environments; consult with their application engineers to determine the best solution for your specific application.
  • The DPX252690DT-5072A1 has a specific MSL rating, which determines the component's sensitivity to moisture during the assembly process. It's crucial to follow TDK's recommended storage and handling procedures to prevent moisture-related damage. Consult with TDK's technical support for specific guidance on MSL and assembly processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX252690DT-5072A1 Overview

Use the download button to access the DPX252690DT-5072A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25, or try a keyword search, such as General Purpose Passive Filters
