The recommended land pattern for DPX252690DT-5225A1 can be found in the TDK Corporation's application note or footprint library. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
Handle the component by the edges or the recommended handling areas to prevent damage to the internal components. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. For rework, follow the manufacturer's recommended rework procedures and use a hot air rework station with a temperature-controlled heat source.
The thermal resistance of DPX252690DT-5225A1 is typically specified in the datasheet. However, the actual thermal resistance may vary depending on the system design, PCB layout, and thermal interface materials used. Engineers should consider the thermal resistance when designing the system to ensure proper heat dissipation and to prevent overheating.
The recommended PCB material and thickness can be found in the TDK Corporation's application note or datasheet. Typically, a high-Tg FR4 or equivalent material with a thickness of 1.6 mm or 0.062 in is recommended. The PCB material and thickness can affect the component's thermal performance, so it's essential to follow the recommended specifications.
To ensure the component's reliability and longevity, follow the recommended operating conditions, storage conditions, and handling procedures. Implement proper thermal management, humidity control, and vibration isolation in the system design. Additionally, consider using conformal coatings or potting compounds to protect the component from environmental stresses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX252690DT-5225A1 Overview

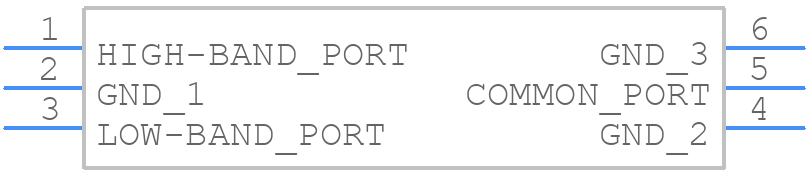

Use the download button to access the DPX252690DT-5225A1 schematic symbol, PCB footprint, and 3D model.
