DPX255950DT-5120A1 - TDK

Description: Diplexers, Pass Band/Low Band=2400 to 2500MHz, Pass Band/High Band=4900 to 5950MHz

Download DPX255950DT-5120A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

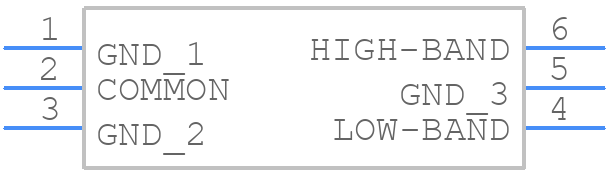

Symbol
DPX255950DT-5120A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX255950DT-5120A1 - TDK PCB footprint - Other - Other - DPX255950DT-5120A1
click to zoom
3D Models
DPX255950DT-5120A1 - TDK - 3D model - Other - DPX255950DT-5120A1
click to zoom

DPX255950DT-5120A1 Details

  • Manufacturer Part Number:

    DPX255950DT-5120A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    5425 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.2 dB

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    2 mm

DPX255950DT-5120A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX255950DT-5120A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, use thermal vias to dissipate heat, and consider using a heat sink or thermal interface material. The thermal resistance of the component should also be considered in the design.
  • The maximum operating temperature range for the DPX255950DT-5120A1 is -40°C to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
  • The DPX255950DT-5120A1 is designed to withstand vibrations, but it's essential to consider the specific vibration profile and frequency range of the application. TDK Corporation provides vibration testing data, and it's recommended to consult with their application engineers for specific guidance.
  • The recommended storage condition for the DPX255950DT-5120A1 is in a dry, cool place, away from direct sunlight and moisture. The storage temperature range should be between -10°C to 30°C, and the humidity should be below 60%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX255950DT-5120A1 Overview

Use the download button to access the DPX255950DT-5120A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25, or try a keyword search, such as General Purpose Passive Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
